Presentation
| Product range | Siri |
| Product type | OCA Laminating Machine / Bubble Removal |
Sale package
| Pack | Bulk |
| Content | Accessories / OCA Laminating Machine / Bubble Removal |
| Product status | New |

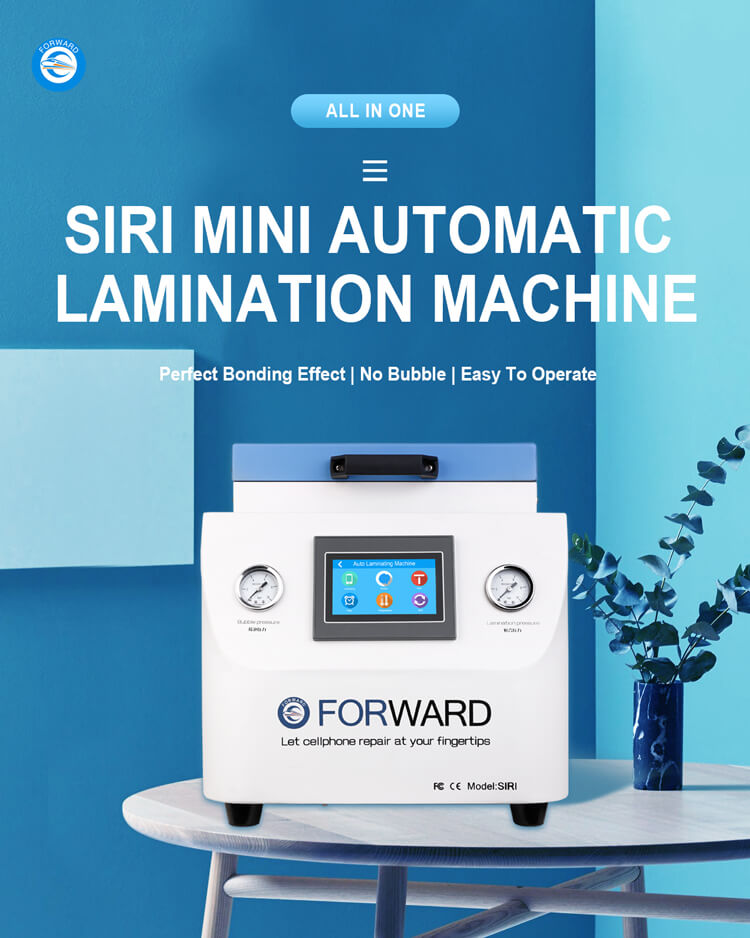

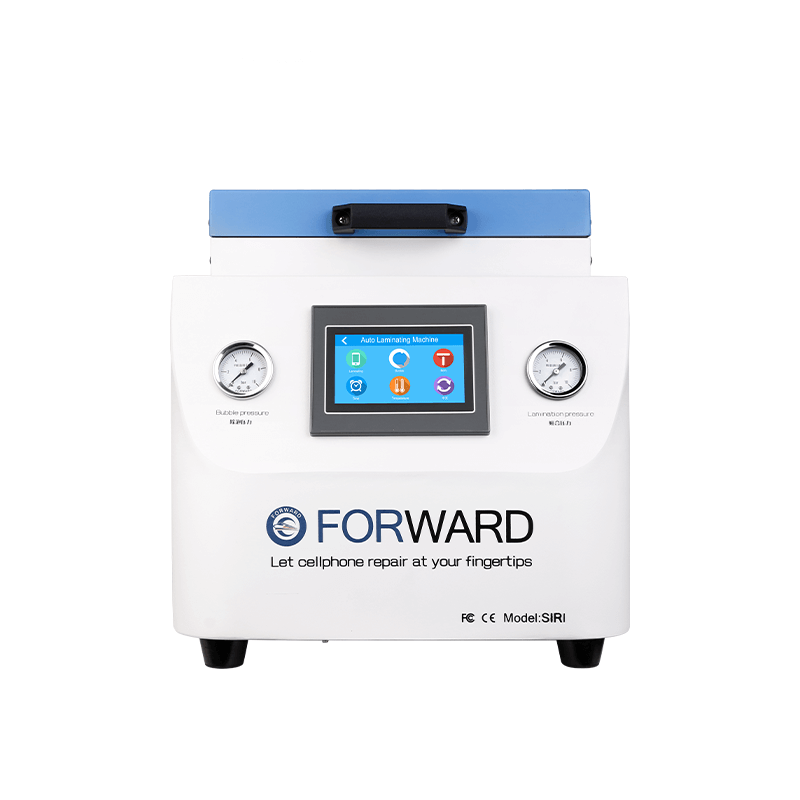

OCA Laminating Machine / Bubble Removal Forward Siri
The OCA laminating machine / bubble removal Forward Siri is a professional device designed for laminating displays
and efficiently removing air bubbles during the repair process. Thanks to the 9.7-inch working surface,
it is suitable for all flat screen series, including iPad, providing precise and uniform lamination.
The equipment is equipped with a large cylinder and four balancing guides, which contribute to the safe lifting of the laminating plate

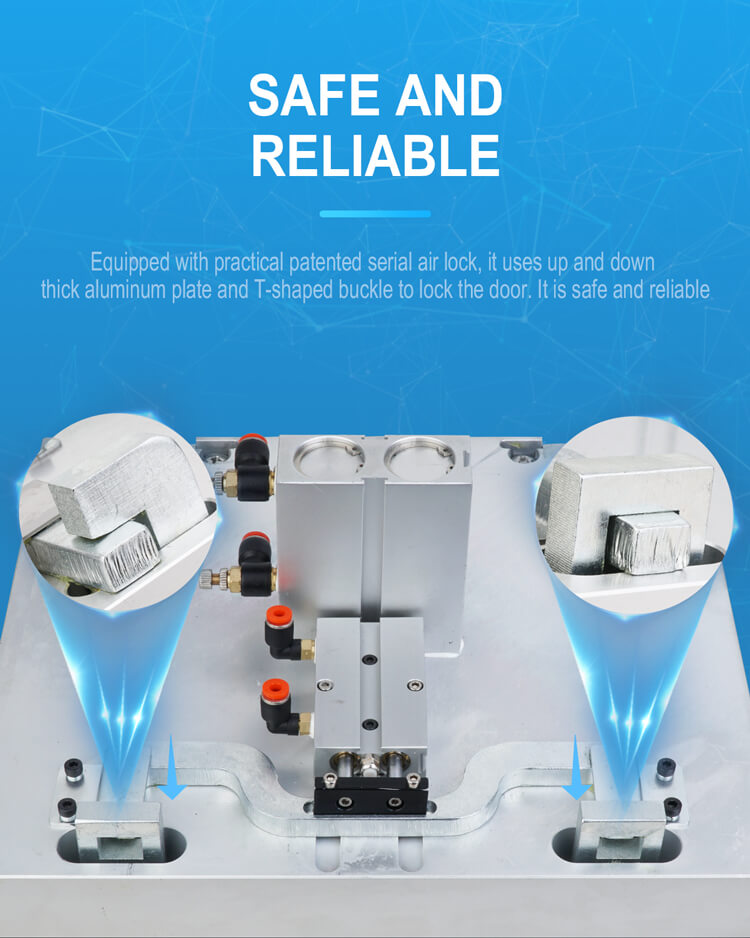

and reduce the risk of damage or screen breakage during use. The chamber closing system is designed for high safety,
using thick aluminum plates and a T-lock system, for stable and reliable operation. The pressure for lamination and bubble removal
can be adjusted as needed, allowing the device to be adapted to different types of work. Additionally, the internal air treatment system

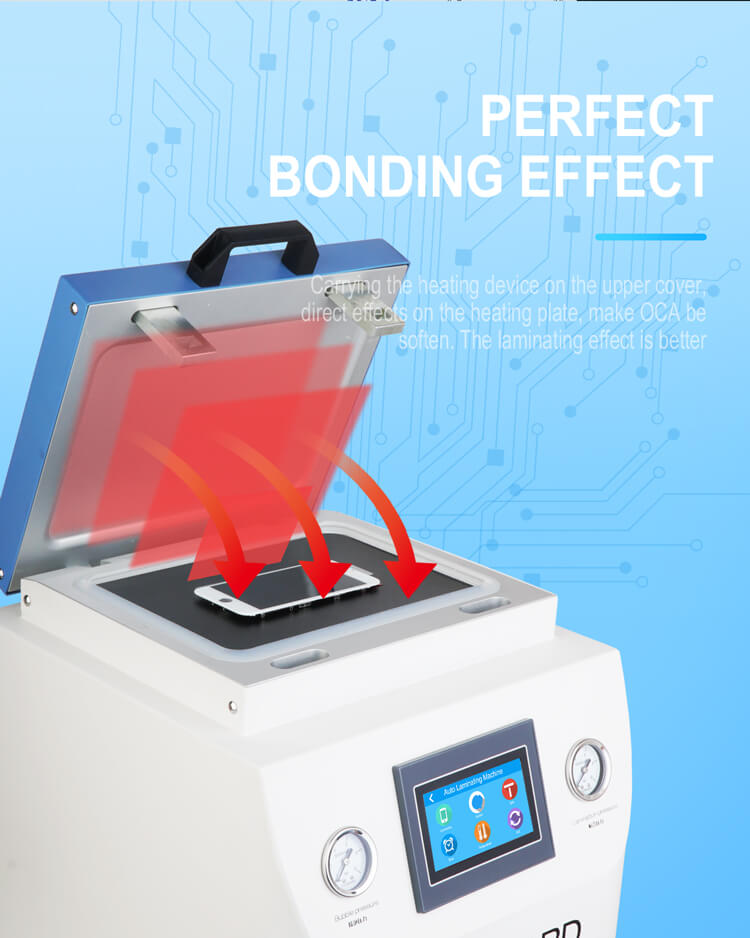

helps isolate moisture, better protecting sensitive components, including the display backlight. The device also includes an integrated heating system at the top,
which acts directly on the heating plate to soften the OCA adhesive and improve the final lamination result.
The interior design allows clear visualization of the paths and pneumatic circuits, facilitating service and maintenance interventions.
Specifications:
- Power: 1000 W
- Power supply voltage: 110 / 220 V
- Working surface: 9.7 inch
- Functions: OCA lamination, bubble removal, integrated heating, pressure adjustment
- Product weight: 33 kg

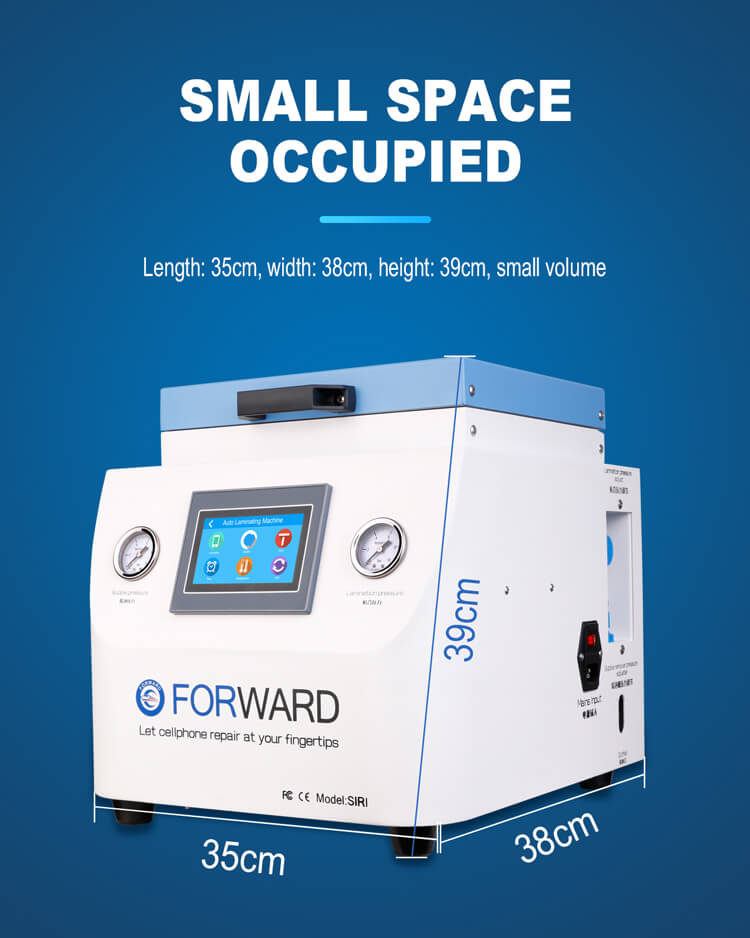

- Product dimensions: 380 x 390 x 350 mm
- Package weight: 39 kg
- Package dimensions: 460 x 420 x 460 mm
