Presentation
| Product color | Black |
| Product type | SSD Interface Adapter |

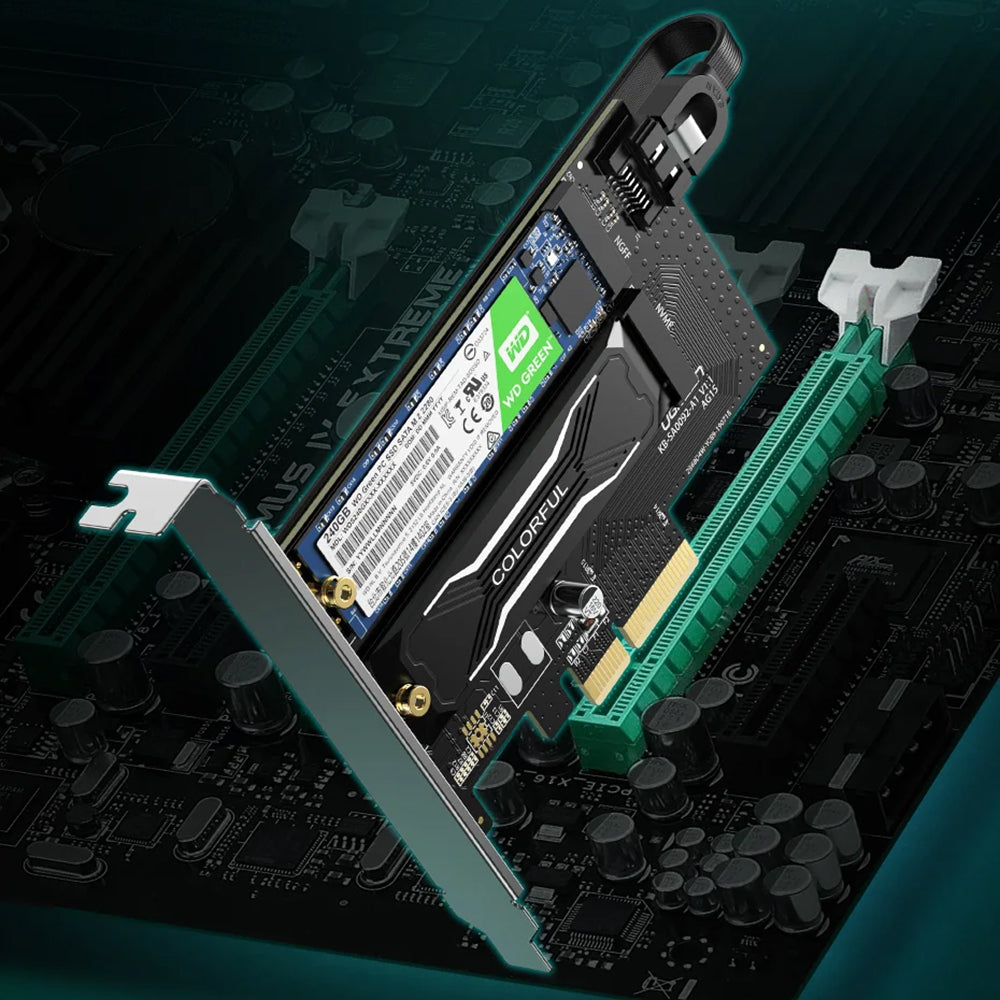

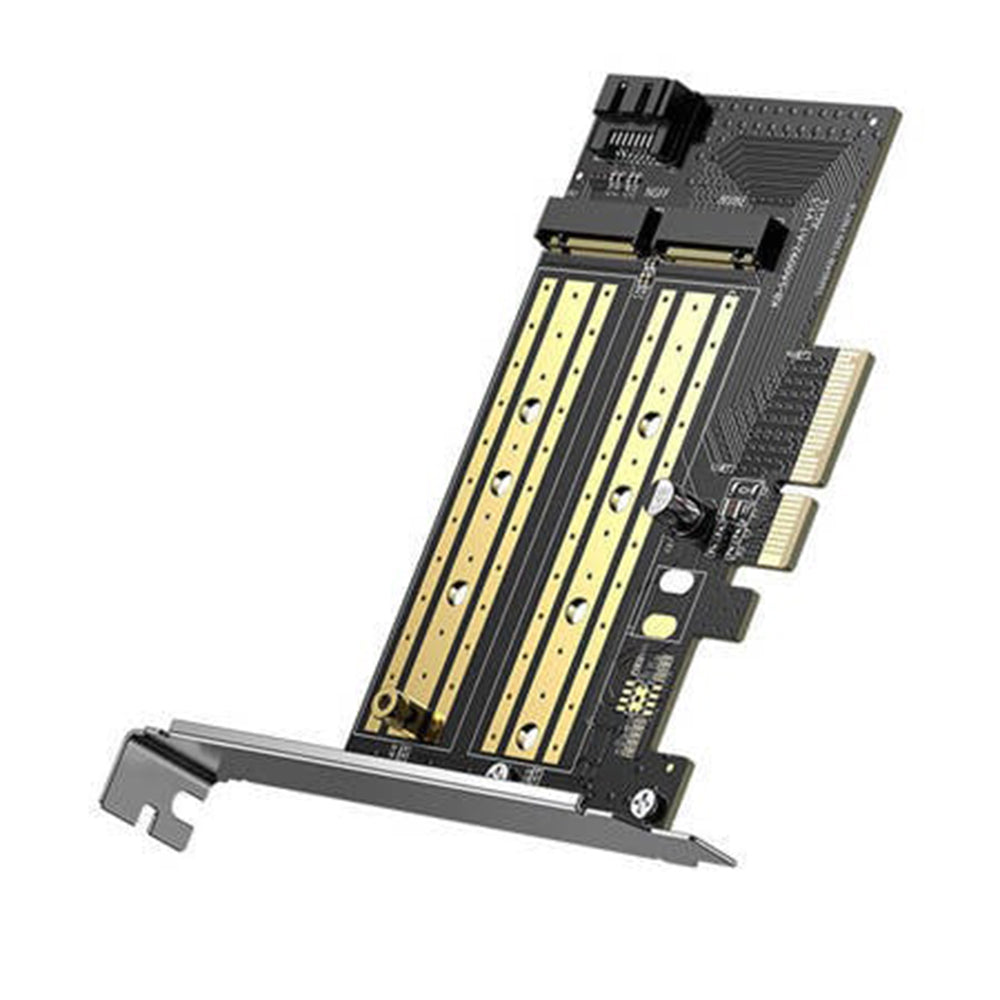

If your motherboard does not have enough M.2 slots, the Ugreen internal expansion card elegantly solves this limitation.
Suitable for a wide range of modern disks
Supports both NVMe SSDs (M-Key) and SATA M.2 SSDs (B-Key or B+M) in multiple formats (2230/2242/2260/2280).
High performance
The PCIe 3.0 x4 interface offers transfer speeds of up to 32Gbps for NVMe SSDs and up to 6Gbps for SATA SSDs.
Specifications:
Input: M.2 M-Key, M.2 B-Key;
Output: PCI-E 3.0 X 4, 7-pin SATA;

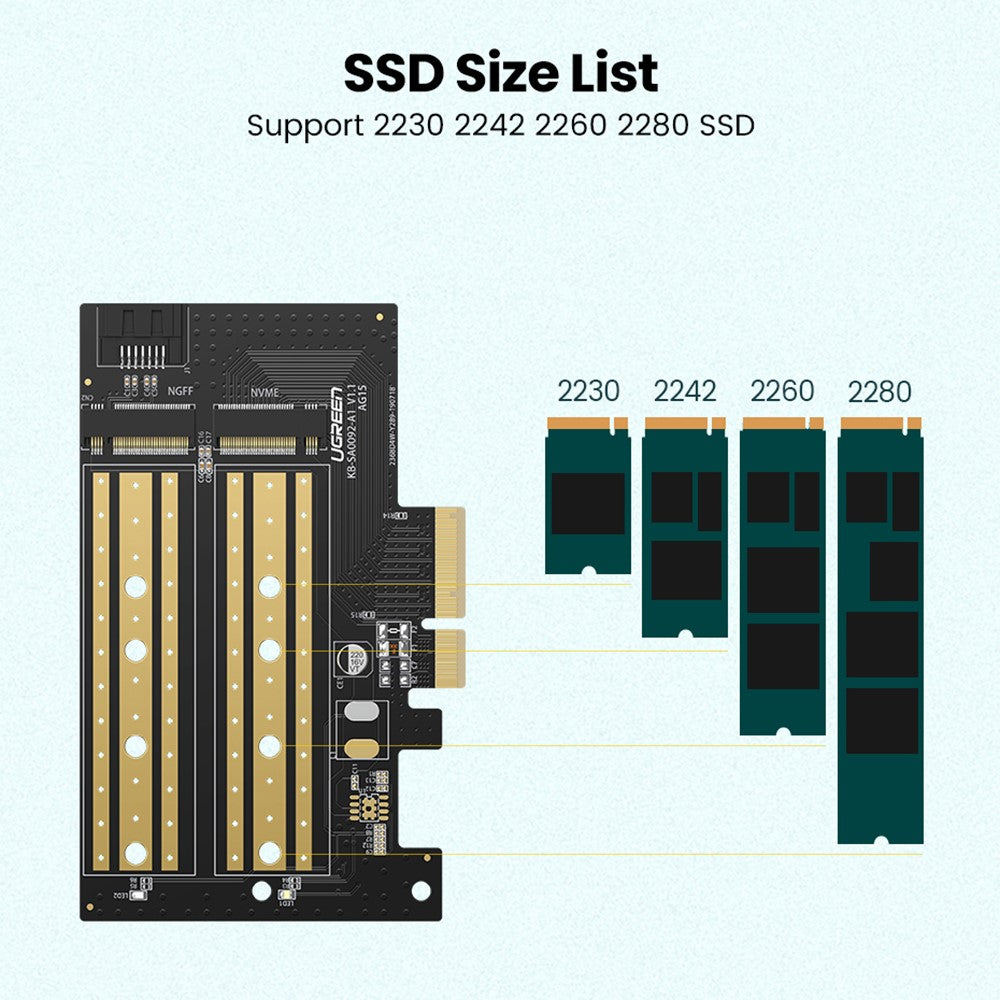

SSD Specifications: 2230 / 2242 / 2260 / 2280 M.2 SSD (NVMe/SATA);
PCI-E data transfer: up to 32Gbps;
SATA data transfer: up to 6Gbps;
Compatibility: Windows/Linux;
PCB dimensions: 116.8 x 74mm;
Deflector panel length: 119mm.
