UGREEN Network Switch 35048EU, 5 x RJ45, Gray

2.5Gb and 10Gb SFP+ Speed

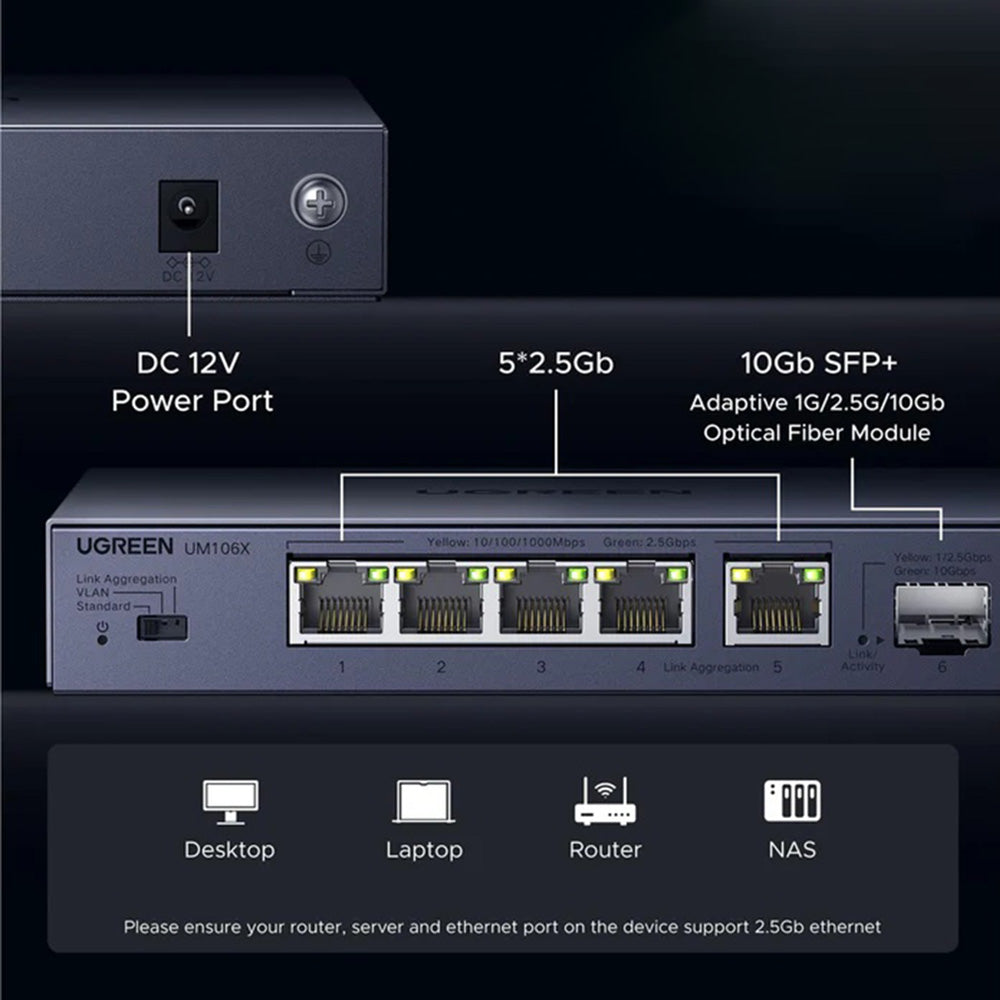

The Ugreen Ethernet switch includes 5 RJ45 ports of 2.5Gb and 1 SFP+ port of 10Gb, allowing fast data transfer in multi-gigabit networks and supporting high-traffic applications.

Plug&Play Function

Plug and Play technology allows connection and use of the switch without additional configuration.

Specifications:

Materials: aluminum alloy;

Type: Unmanaged;

PoE (Power over Ethernet): No;

Network standards: IEEE 802.3/u/x/ab/bz/ae;

Ports: 5x 2.5Gbps RJ45, 1x 10Gbps SFP+;

Interface features: Auto MDI/MDIX, Full Duplex and Half Duplex modes, automatic MAC address learning and updating, non-blocking switching at maximum connection speed;

VLAN: Ports 1-4 are isolated from each other and cannot communicate directly. They can only communicate with ports 5 and 6;

Link Aggregation: Ports 4 and 5 can be combined to increase bandwidth;

Transmission medium: 10Base-T: Cat 3 or higher (maximum length 100m), 100Base-TX: Cat 5 or higher (maximum length 100m), 1000Base-T: Cat 5e or higher (maximum length 100m), 2500Base-T: Cat 5e or higher (maximum length 100m);

Switching capacity: 45Gbps;

Transfer method: Store and Forward;

Forwarding rate: 10Mbps (14880pps/port), 100Mbps (148800pps/port), 1000Mbps (1488000pps/port), 2500Mbps (3720000pps/port), 10Gbps (14880000pps/port);

MAC address table: 4K;

Jumbo Frames: 12K;

Power supply: AC 100-240V, 50/60Hz;

Output power: 12V/1.0A max;

Operating temperature: 0°C - 40°C;

Operating humidity: 10%-90% RH, non-condensing;

Storage temperature conditions: -40°C - 70°C;

Storage humidity conditions: 5%-90% RH, non-condensing.
